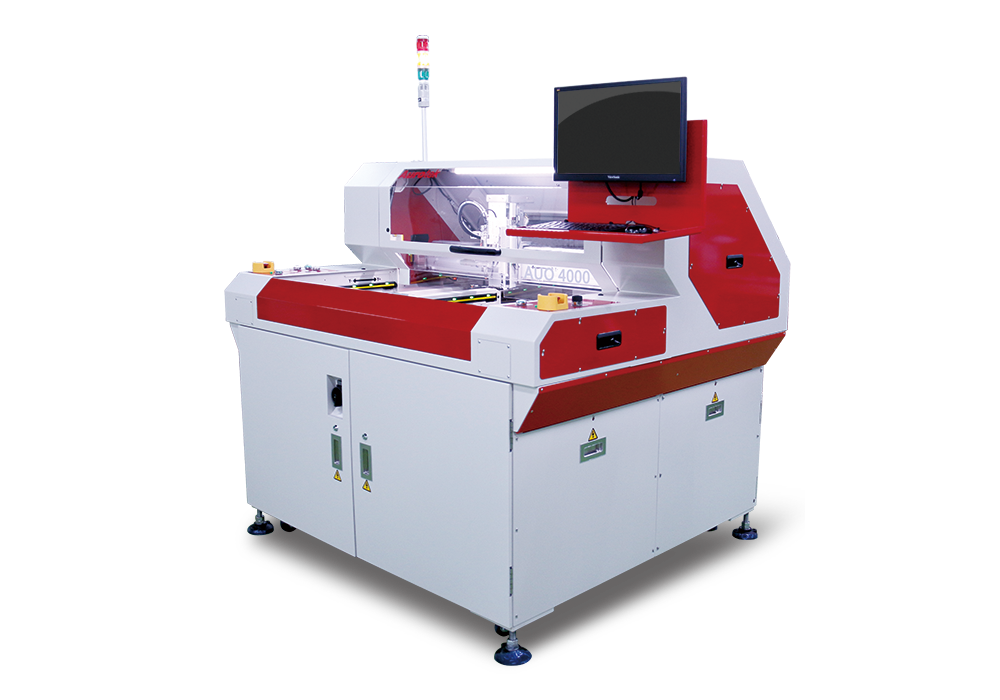

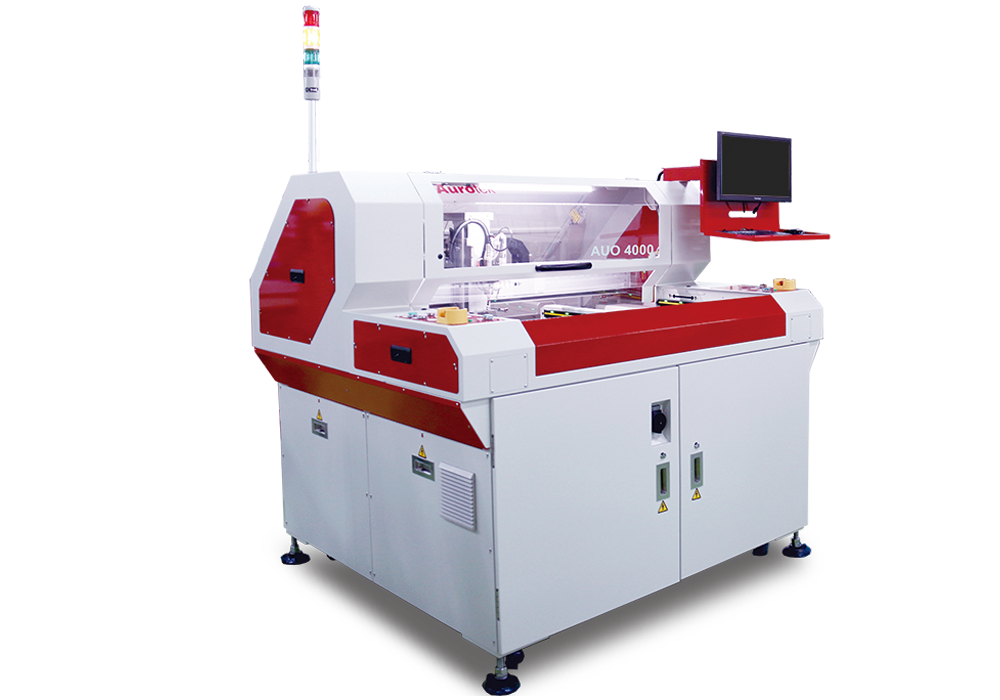

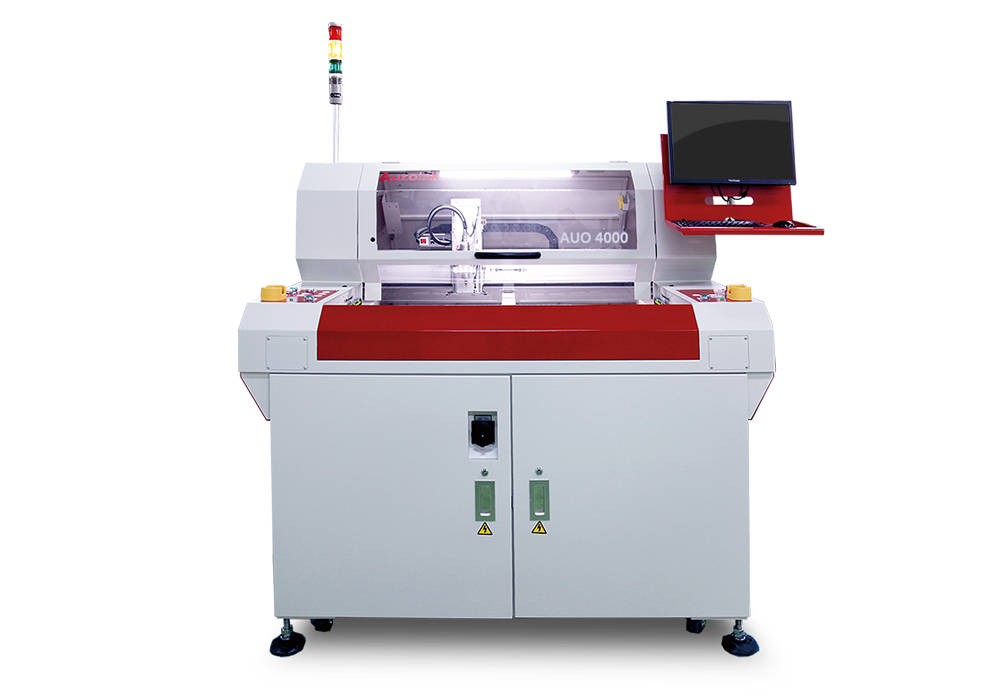

The semi-automatic (offline) PCB Separator is the best solutions to fit the mass production in SMT line.
Dual working table enhances the production efficiency. Standard 2 machine models are applicable for different PCB sizes (330 x 350mm, 450 x 520mm).
At same time Aurotek provides customize options to meet the specific demand of PCB production.
Friendly interface, accurate PCB depaneling along with dual working table brings you more productive production experience.
A. High horsepower indusrial dust-collectors
B. Small dust-collecting duct designed for upward or downward dust extraction systems
C. Duct is close to the milling area, removing dust at once while depaneling
A. KURODA high precision ball screw
B. Panasonic servo motor
C. Sycotec spindle
D. Advantech industrial computer
E. Aurotek motion control card
F. Aurotek Vision System
We gurantee: Cpk>=1.33
Positioning Repeatability ±10 μm
Cutting Accuracy ±80 μm
A. High-speed axis modules reaches up to (max.) 1200mm/s
B. Maximum cutting speed 100mm/s
C. 2 parellel processing tables. Maximize production throughput while minimizes idle time
D. Customized fixture and tools. Production changeover can be done in just a few seconds
Easy to use is a MUST.
