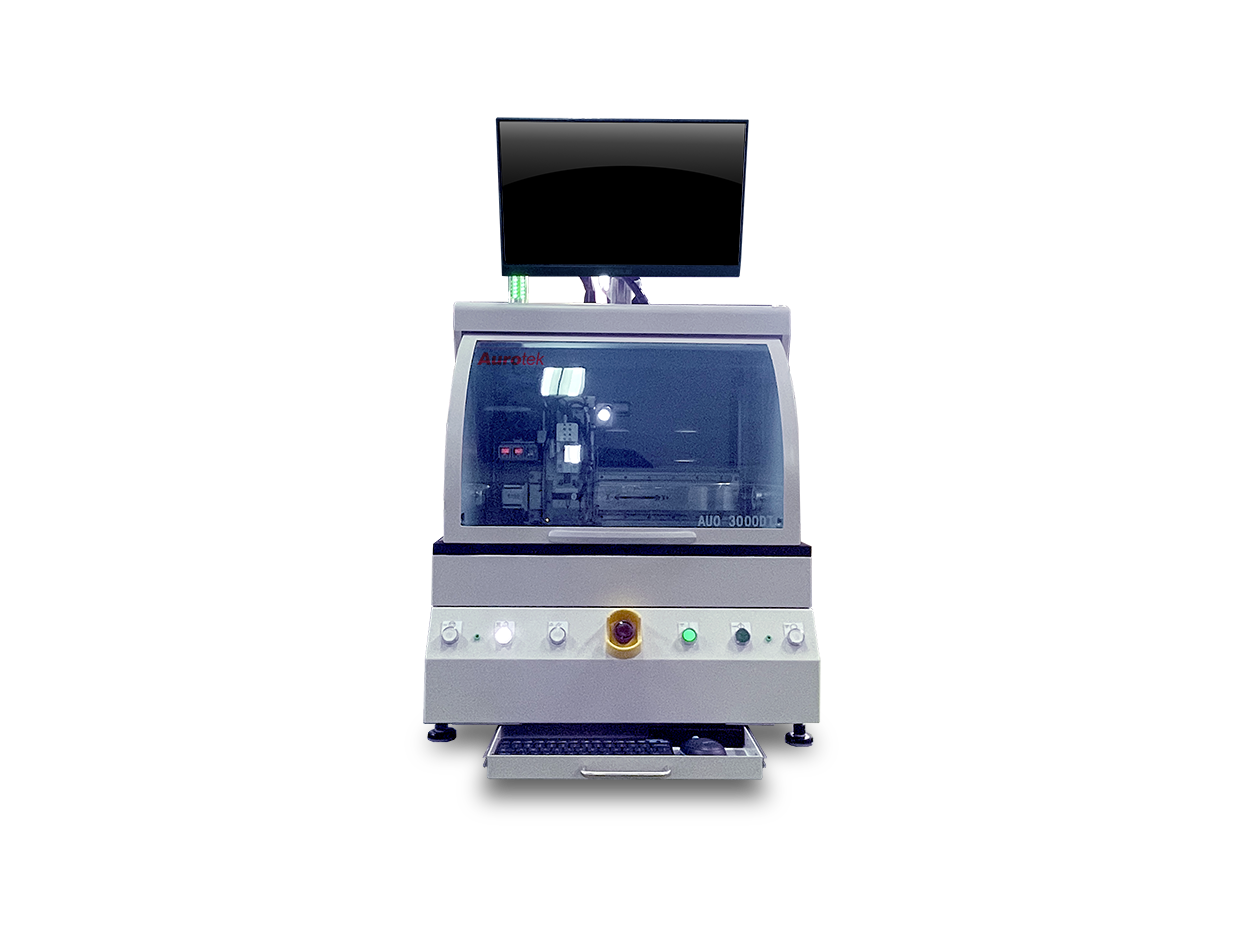

AUO 3000DT desktop type PCB separator is the most ideal solution for SMT line with space limitation, the PC-based controller system provides more friendly user interface.
The AUO 3000DT is equipped with its optimal dust collection system, and its lightweight design provides customers a space-saving solution.
The single working table is suitable for small-volume large-variety production, it is a most cost-efficient PCB separator!
AUO 3000DT brings usability, safety and portability to user.
A. Mini size High horsepower indusrial dust-collector.
B. Small dust-collecting duct is close to the milling area, removing dust at once while depaneling.
A. KURODA high precision ball screw.
B. Panasonic servo motor.
C. Sycotec spindle.
D. Advantech industrial computer.
E. Aurotek motion control card.
F. Aurotek Vision System.
We gurantee: Cpk>=1.33
Positioning Repeatability ±10 μm
Cutting Accuracy ±80 μm

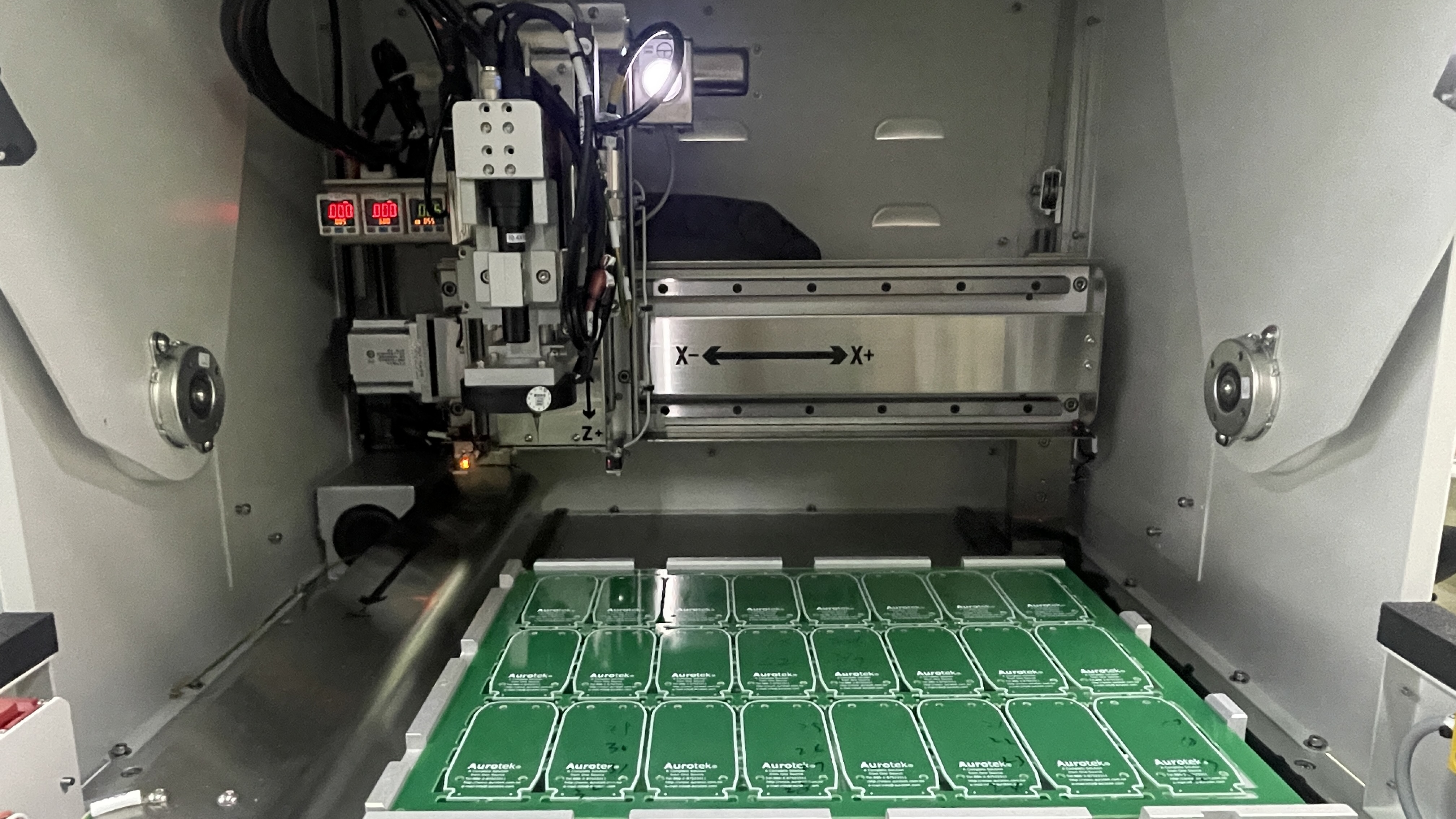

A. High-speed axis modules reach up to (max.) 500mm/s
B. Maximum cutting speed 100mm/s
C. Customized fixture and tools. Production changeover can be done in just a few seconds
Easy to use is a MUST.
We design machines for:
